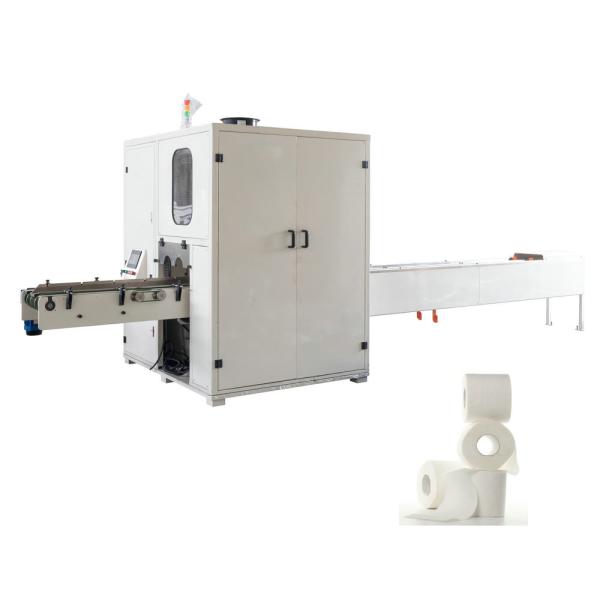

XY-AI-280 Fully Automatic Log Saw Cutting Machine Large Production Scale Cutting Machine For Factory Use
Product Description
XY-AI-280 Double Channel Log Saw Machine is designed for efficiently cutting toilet paper rolls and kitchen towel paper rolls. It features high automation and advanced technology, including a servo driving system, frequency conversion speed regulation, PLC control, and a user-friendly touchscreen interface.
Function & Functions
Automatic blade grinding system, enabling quick parameter setting on PLC.
The sharpening wheel adapts to the wear degree for efficient grinding.
Two logs are fed automatically, cut, and pushed with precision.
Shortcuts can be activated to produce high-quality products.
Equipped with two sets of clamping channels for easy switching.
Product Parameter
| Model | XY-AI-280 Log Saw Cutting Machine(Double Channel) |
| Jumbo Roll Width | 1750mm (Other size can be specified) |
| Jumbo Roll Diameter | Φ95~φ105mm…125-135mm (Other size can be specified) max. 140mm |
| Design Speed | 150cuts/min |
| Stable Speed | 100cuts/min |
| Grinding System | Pneumatic Sharpen, grinding time can be set |
| Driving System | Delta Servo Motor |
| Power | 11KW |
| Overall Dimension | 6500*2500*2000mm(Other size depends on model and configuration) |
| Blade Diameter | φ610*4.7mm |
| Voltage | 380V 50HZ |
| Weight | About 4.5T |
Detailed Pictures
Related Product
XY-TQ-B Automatic toilet paper making machine
An automatic toilet paper rewinding machine is designed for the efficient processing of toilet paper rolls. The machine features a core feeding unit and is capable of operating with or without a core. Raw material from the jumbo roll undergoes full embossing or edge embossing, followed by perforation, end cutting, and the application of tail glue, forming a log. This log is then processed by a cutting machine and packing machine to produce the finished products. The machine is controlled by a PLC and operated through a touch screen, ensuring a fully automatic and user-friendly process that reduces labor costs. Additionally, our machine can be customized to meet specific client requirements. The production process includes Unreeling, Embossing, Perforating, Lamination, Rewinding, Tail-gluing, Edge trimming, and Automatic core loading, resulting in a seamless and efficient operation.
VIDEO LINK: https://youtu.be/LxLvAe0L-Hw
XY-AI-398A Semi-automatic toilet paper packing machine
Packing and sealing are executed with utmost precision and neatness. The machine offers both full-automation and semi-automation operating modes for versatile applications. When integrated with a conveyor system, it can be seamlessly connected to an automatic toilet roll packing machine, further optimizing efficiency. This not only significantly boosts production capacity but also reduces labor costs and overall production expenses, achieving a higher cost-effectiveness in manufacturing processes.
VIDEO LINK: https://youtu.be/kw6aMQYSgSs
Work Shop
Company Profile
Fujian Xinyun Machinery Development Co., Ltd is good at Paper Converting Machinery manufacturing.
Professional supplier of:
1) Toilet Paper Machine (1.2m--2.8m width of parent roll, Customize Service)
2) Roll Kitchen Paper Towel Machine (1.2m--2.8m width of parent roll, Customize Service)
3) Facial Tissue Machine (2-14 output lanes)
4)Napkin Paper machine(L-fold, 1/4-fold, 1/6-fold, 1/8-fold and other multi-fold type)
5) Hand Towel Paper Machine(C-fold, V-fold and N/Z fold type)
6) Pocket Tissue Machine(mini and standard size)
7) All kinds of Tissue Paper Cutting and Packing Machine
8) Another Household Paper Equipments and Production Line.
Welcome to send us An Inquiry, we will reply as soon as possible, thank you.
